Powerful Yet Economical
Delivering 250 PSI With A Single-Stage Compressor System

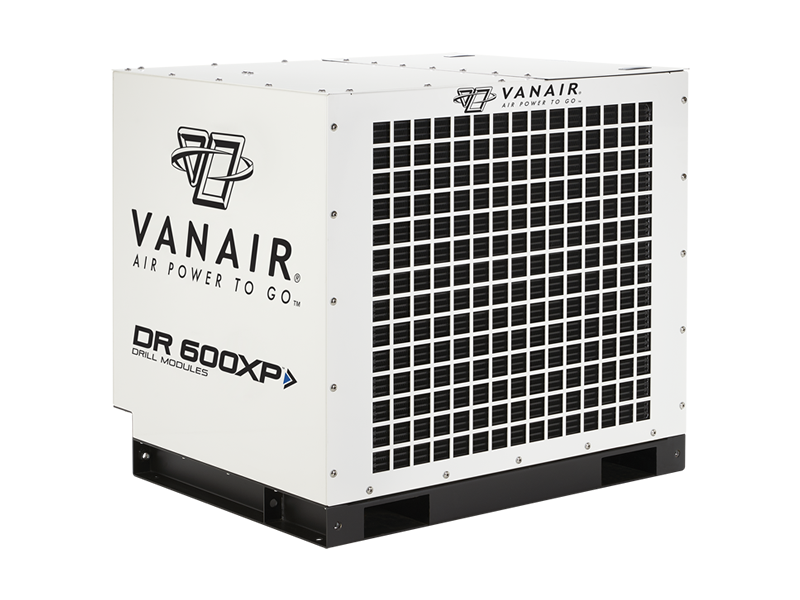

The DR 600XP provides you with the extra boost in pressure you need for the most demanding jobs, such as directional, down-the-hole, percussive hammer and rock drilling. In fact, the DR 600XP provides enough air and pressure to run a 4-inch hammer drill. Vanair provides world-class customer service, innovative engineering and the industry’s best delivery lead times, making the DR 600XP the right choice for your high pressure drilling requirements.

  • Literature
  • Specifications
  • Special Features
  • Options
  • Hydraulic System Requirements
  • Parts

Air Compressor

Rated Capacity 600 CFM (17 m3/min)
Pressure 250 PSI (17.3 Bar)
RPM Input 2100 RPM
Input BHP Required Up to 230 HP (172 kW)
Tank Discharge (SAE) 2 In. NPT

Physical Specifications

Compressor Module Weights 1680 Lbs.
Separator Tank Weights 350 Lbs.

Fan Power Requirements

Fan Drive Method Hydraulic
Hydraulic Flow Required 13.5 GPM
Hydraulic Pressure Required 1200 PSIG
Hydraulic Connections (Inlet and Outlet) 3/4 In. JIC
Case Drain Provided 3/8 In. JIC

Compressor dimensions with fittings (In.) – 46 L x 38.0 W x 42.0 H*

Separator tank dimensions with fittings (In.) – 18 Dia. x 41.0 H

Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.



  • 600 CFM and 250 PSI
  • Industry Leading Rotary Screw Air Compressor
  • Compact Design
  • Easy to Operate and Maintain
  • Simple Controls and Piping
  • Built for Harsh Environments
  • Made in the USA


  • Rotary Screw Air Compressor
  • Single-Stage
  • Field Proven Performance
  • Recirculating Valve for Noise Reduction
  • Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings


  • Vertical Design for Smaller Footprint and Angle of Operation
  • In-Tank Coalescer for Longevity
  • Minimum Pressure Valve
  • Pressure Relief Valve
  • Oil Scavenge Sight Glass
  • Coalescer Restriction Indicator


  • Ambient Operating Range of -20 °F to +120 °F


  • Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
  • Air Restriction Indicator


  • Conveniently Located, Easy-to-Read Temperature and Pressure Gauge
  • Oil Level Sight Glass


  • Easily Accessible Air Filters and Coalescers for Routine Service
  • Independent Separator Tank for Ease of Maintenance
  • Hinged–Top Roof and Access Panel for Maintenance and Adjustments
  • Dust Evacuator for Easy Filter Maintenance


  • High-Pressure Shutdown
  • Air Pressure Relief Safety Valve
  • Automatic Blowdown on Shutdown
  • Oil Fill Plug Safety Relief
  • Minimum Pressure Valve


  • Mounting Provisions on the Bottom of the Frame
  • Heavy Duty Frame with Integral Forklift Tubes
  • Powder Coated, Galvanneal Sheet Metal Enclosure

  • Drive Hub
  • Adapter for hydraulic motor
  • SAE “D” face adapter for Hydraulic Motor
  • Vanguard HP High Pressure Two Stage Rotary Screw Compressor Oil 300-500 PSI, 55 Gal, #275691-55 gal

All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: The hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair recommends a dedicated pump and hydraulic circuit).
