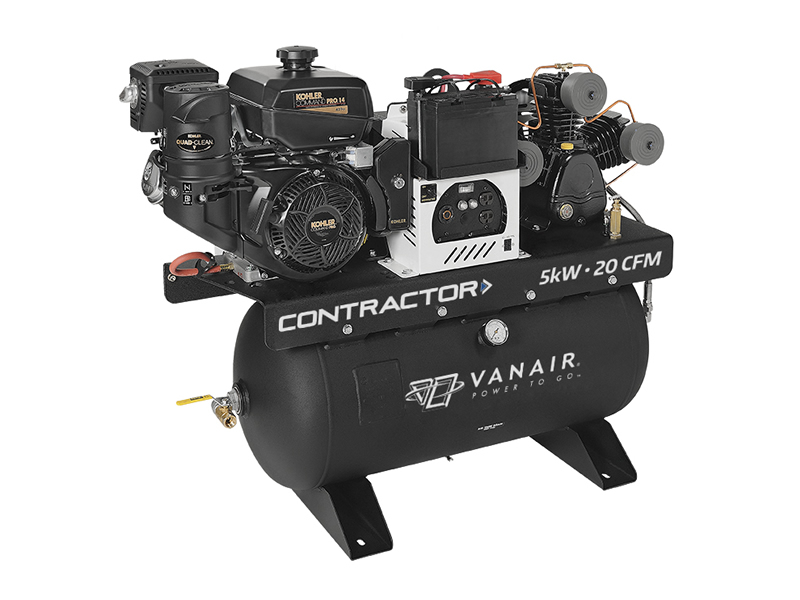

Contractor - Reciprocating Air Compressor with Generator COTIZAR Get Rugged Air and AC Power in a Single Transportable Unit Rugged, dependable, and easily transportable, the Vanair’s Contractor provides you with 20 CFM of air power and 5 kW of peak AC generator power for all your tough jobsite needs. Available with a control panel on the unit with two outlets or a remote mountable control panel for easy access. Literature Product Specifications Special Features Options/Accessories Parts Download Literature Download Engine Driven Systems Literature Bid Specifications Warranty Engine: 14 HP Kohler or19 HP Kohler Compressor Type: Reciprocating Generator Wattage: 4.2 kW Contiuous 120V/240V Max Pressure PSI: 150 PSI CFM Rating: 20 CFM Air Storage Capacity: 10 Gal., 30 Gal., or Skid Drive System: Dual V-Belt Fuel Capacity: Kohler® 14 1.9 Gal.Kohler® 19 4.5 or 11 Kohler 14 HP Unit Dimensions (In.):51L x 21W x 28H - 10 Gal. Kohler® 14 HP51L x 20W x 38H - 30 Gal. Kohler® 14 HP51L x 19W x 22H - Skid Mount Kohler® 14 HP49L x 22W x 41H - 30 Gal. Kohler® 19 HP48L x 20W x 25H - Skid Mount Kohler® 19 HPDry Weight (Lbs.): 425-550 Depending on Platform Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements. Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations. SPECIAL FEATURES Auto Throttle Control on Air Compressor Reliable and Easy Starting Kohler® Engines Drive System Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals Totally Self Contained, but can be Integrated with the Chassis for Maximum Versatility Integrated Lift Hook and Battery Tray Designed for Easy Maintenance and Fuel Efficiency Powder Coated Sheet Metal Galvannealed Steel AIR COMPRESSOR Reciprocating Compressor 20 CFM 150 PSI Maximum Cast Iron Air Pump With (3 Cylinder Head Design For Better Cooling) GENERATOR 4.2 kW Continuous @ 60 Hz Independent AC Power for Safe Multi-Functioning Brushless Smooth Wave Power with Minimal Distortion ENGINE 14 HP Kohler® or 19 HP Kohler® Electric Start 1.9, 4.5 or 11 Gal. Fuel Tank REMOTE CONTROL PANEL(OPTIONAL FOR 19 HP KOHLER® ONLY) Provides Ultimate user Convenience and Safety All Functions Accessible at Remote Panel. No Need to Jump in and out of Vehicle to Control Function. AVAILABLE IN: 10 Gallon, 30 Gallon or Remote Tank Remote Condensation Drain Cold Weather Kit Maintenance Kit Remote Mount Control Panel (Kohler® 19 Only) Electric Fuel Pump (Kohler® 19 Only) Slimline 11 Gal. Fuel Tank (Kohler® 19 Only) Remote Air Tank Options Dry Cell Battery Hose Reels GFCI Outlet for Protection of 120V/240V MAINTENANCE Easy Service Access Part Description Part Number Compressor Service Kit, Contractor - (Includes 3 Air Filters & Vanguard™ Recip. Oil) KIT1168 Engine Service Kit, Kohler 11 HP & 14 HP (Includes 1 Qt Oil, Air Filter, Pre-Filter) KIT1290 Engine Service Kit, Kohler 19 HP (Includes 2 Qt Oil, Air Filter, Pre-Filter) KIT1289 Air Reservoir Tank - 28 Gal. (Underdeck mounted tank with mounting brackets)* 032707 Air Reservoir Tank - 30 Gal.* OA49645
